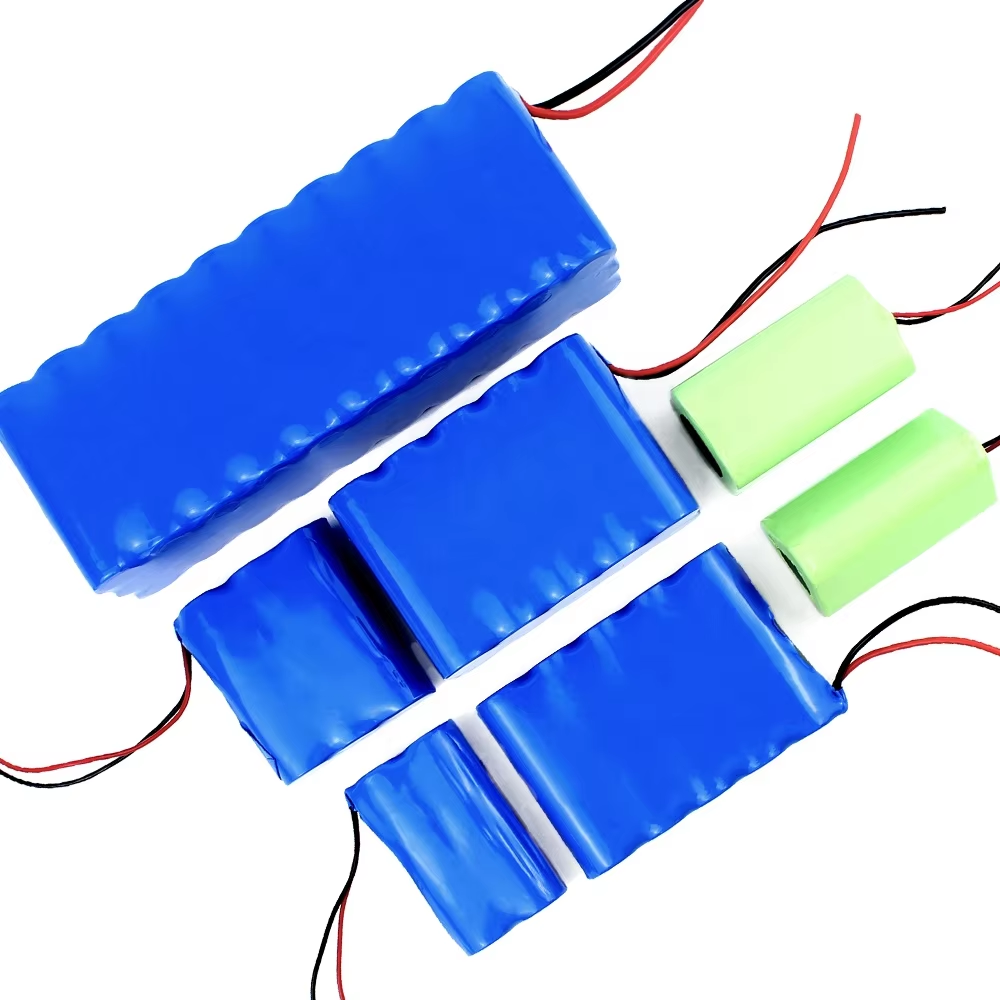

Customizing a battery pack can be a rewarding project, especially for hobbyists or professionals working on specialized electronics. Here’s a guide to help you through the process.
Understanding Your Requirements
Before you start, it's crucial to define your needs:
1. Voltage and Capacity: Determine the voltage and capacity (mAh) required for your device.
2. Size and Weight: Consider the physical constraints and weight limits.
3. Chemistry Type: Choose between Lithium-ion, NiMH, LiPo, etc., based on your application.
Tools and Materials Needed
- Battery Cells: Purchase high-quality cells from reputable manufacturers. (HAKADI LIFEPO4 ENERGY SOLUTIONS)
- Battery Holders/Straps: To secure the cells together.
- Nickel Strips: For connecting the cells.
- Spot Welder: Essential for welding the nickel strips to the cells.
- Battery Management System (BMS): Protects the battery pack from overcharging and over-discharging. (JK BMS/ DALY BMS/ SEPLOS BMS...)
- Heat Shrink Tubing: For insulating and protecting the pack.
- Soldering Kit: For additional connections.
If you don't want buy them seperatly and find supplier everywhere, please contact: HAKADI LIFEPO4, we will provide you DIY BOX KITS with all accessories!
Steps to Customize Your Battery Pack
1. Design the Configuration
- Series vs. Parallel: Decide if you need a series, parallel, or a combination. Series increases voltage, while parallel increases capacity.
2. Assembling the Cells
- Arrange the Cells: Based on your configuration plan.
- Secure the Cells: Use holders or tape to keep them in place.
3. Connecting the Cells
- Spot Welding: Use the spot welder to attach nickel strips between cells. Avoid soldering directly onto the cells to prevent damage.
- Check Connections: Ensure all connections are secure and correct.
4. Installing the BMS
- Connect the BMS: Attach the BMS to manage the charging and discharging processes.
- Wire Correctly: Follow the BMS wiring diagram carefully to avoid short circuits.
5. Insulating the Pack
- Apply Heat Shrink Tubing: Cover the entire pack to protect it from environmental factors.
- Label the Pack: Indicate voltage, capacity, and any warnings.
Safety Precautions
- Wear Safety Gear: Use gloves and goggles during assembly.
- Work in a Ventilated Area: To avoid inhaling fumes from soldering and welding.
- Avoid Short Circuits: Double-check all connections and insulation.
Testing the Battery Pack
- Initial Charge: Use a balanced charger for the first charge.
- Monitor Performance: Test the pack under load to ensure it meets your requirements.
- Check for Heat: Ensure the pack doesn’t overheat during operation.
Conclusion
Customizing a battery pack allows you to tailor it to specific needs, enhancing the performance of your devices. By following these steps and observing safety precautions, you can create a reliable and efficient battery pack. Whether for a DIY project or a professional application, understanding the intricacies of battery customization is both empowering and practical.
Feel free to share your projects or ask questions in the comments below!
