HV SYSTEM BESS 200KWH 215kwh battery pack 768 volt 280Ah Industrial Co

HV SYSTEM BESS 200KWH 215kwh battery pack 768 volt 280Ah Industrial Commercial Outdoor Cabinet

1 / 768V / 215kwh

$0.00

HV SYSTEM BESS 200KWH 215kwh battery pack 768 volt 280Ah Industrial Commercial Outdoor Cabinet

$0.00

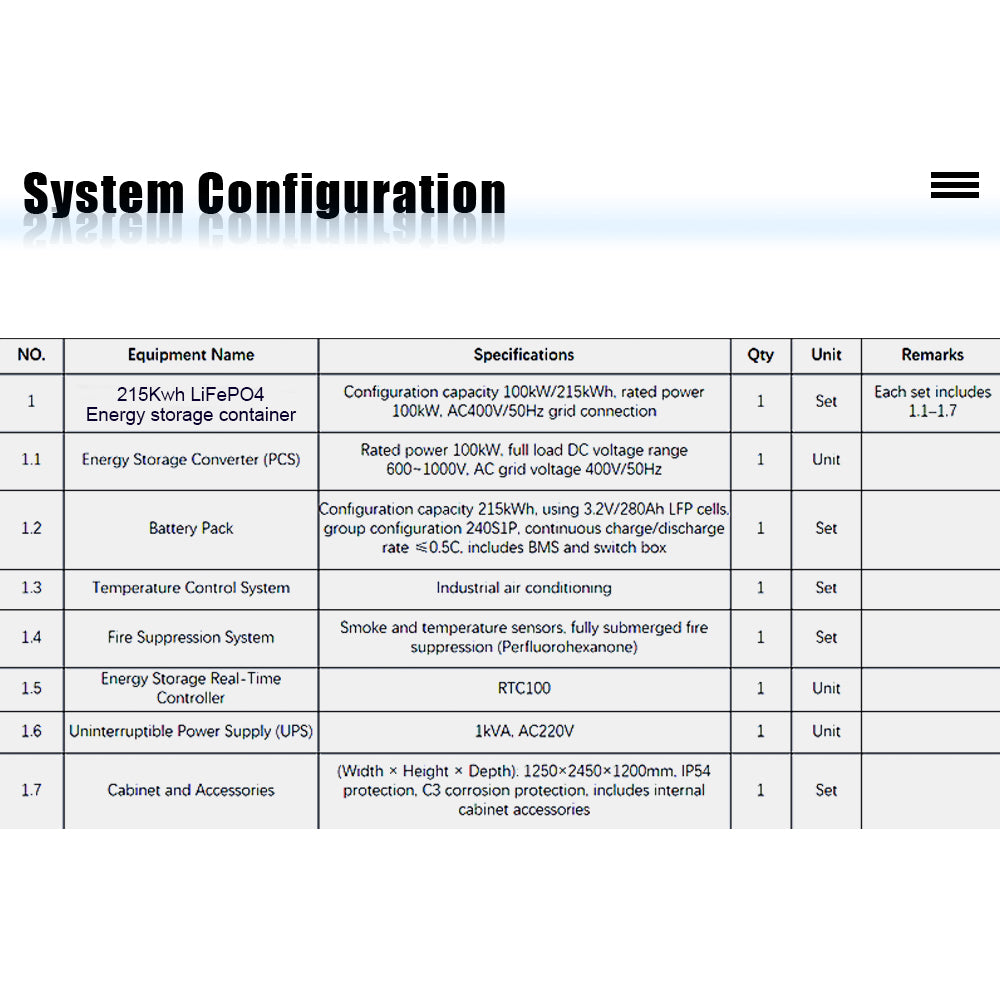

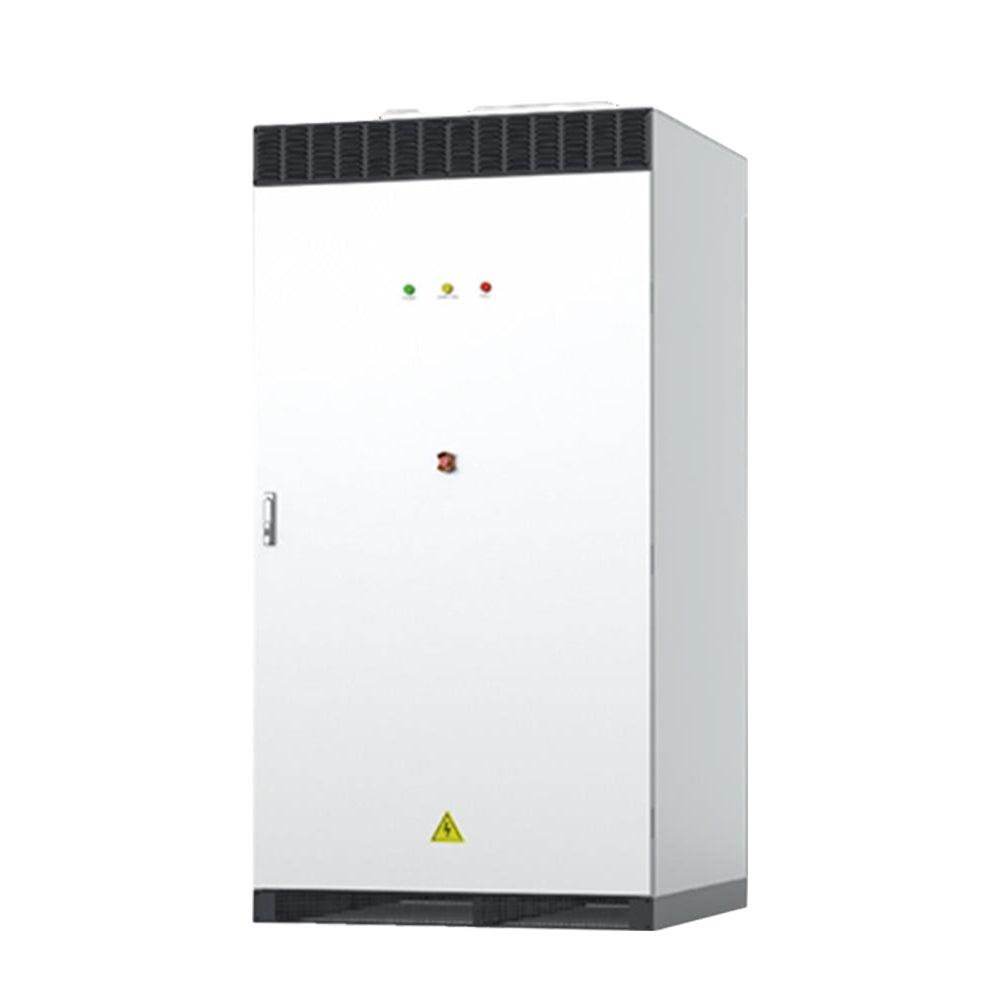

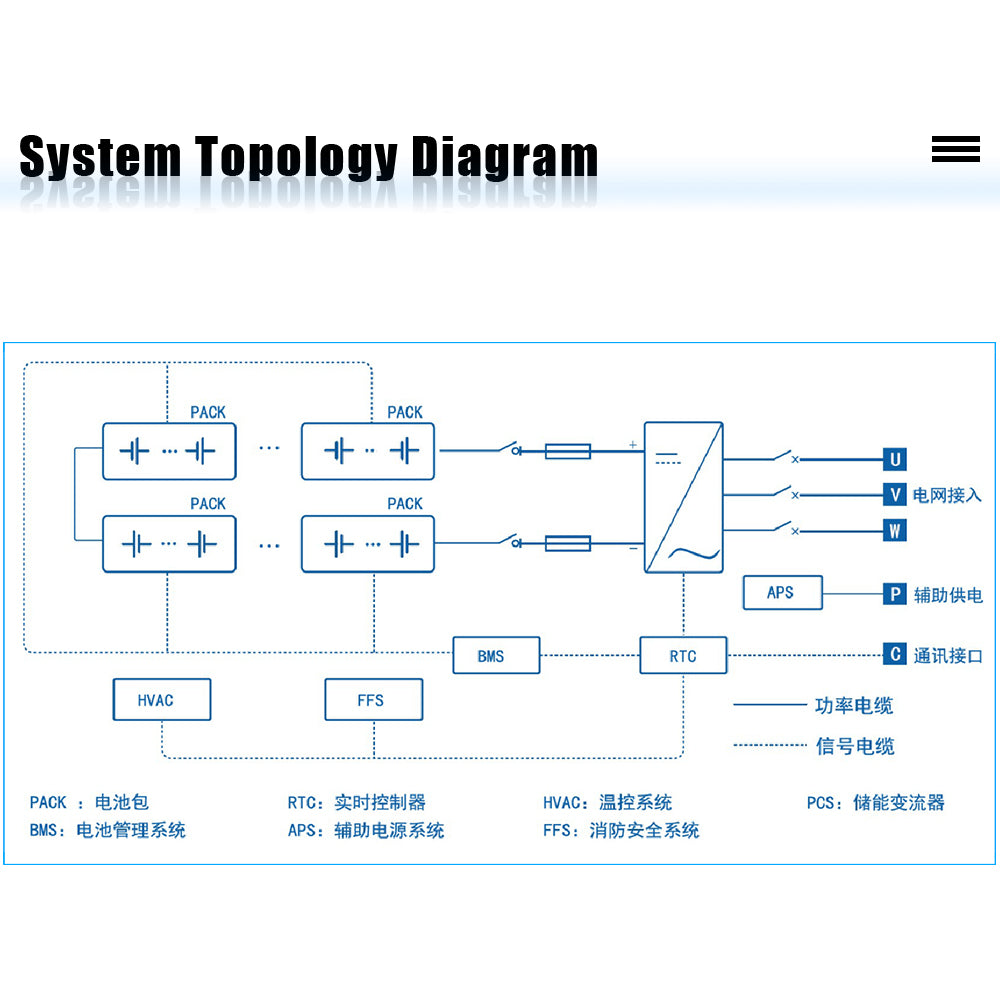

HAKADI 215 commercial & industrial energy storage system adopts the All in one design concept. The cabinet is integrated with a battery management system (BMS), and an energy management system (EMS).modular power conversion system(PCS),andfireprolec-tian system. The system's capacity is up to 215 kWh and the power is up to 100 kW. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start(The ability to restore power without relying on the help of other networks after the power system is out of service due to a fault.).

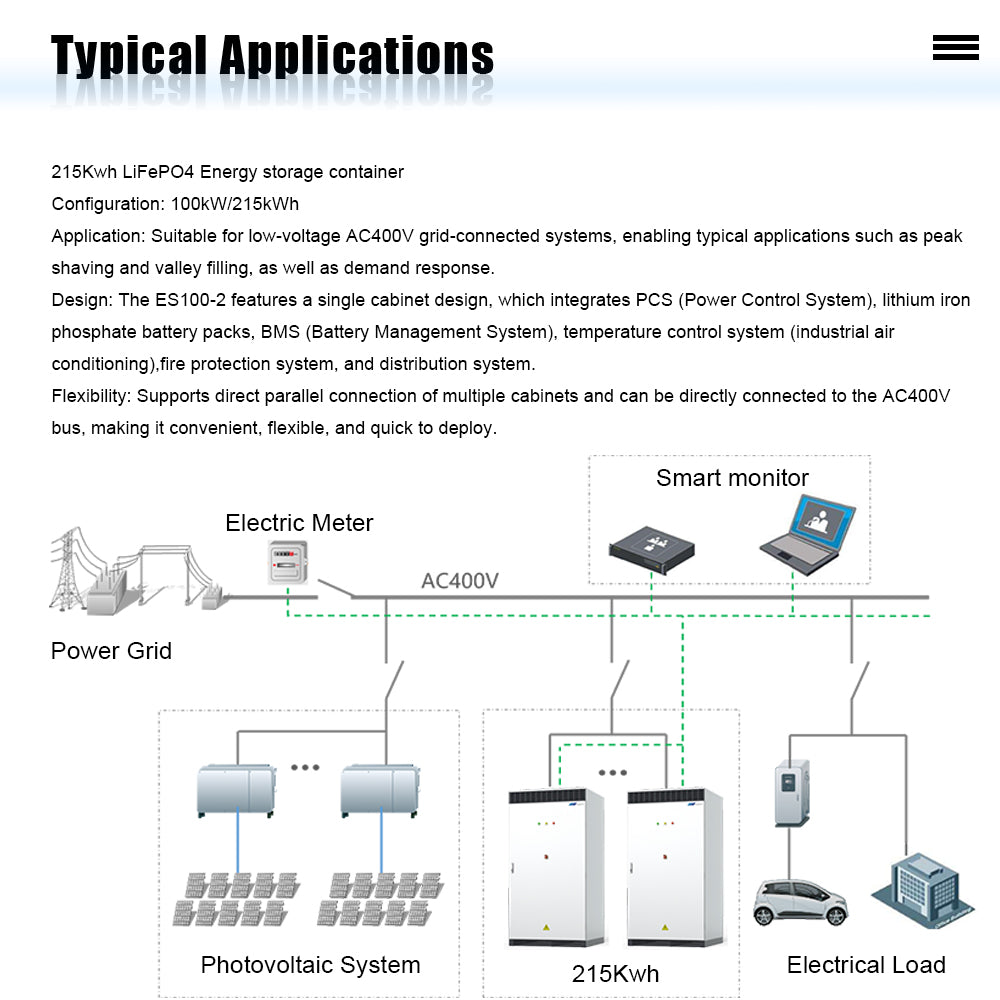

HAKADI 215 intelligent energy storage system is directly connected to the low-voltage side and can realize multi-connection cabinets and flexible expansion. lt is the best choice for all industrial and commercial application scenarios.

Advantages

High Capacity: 215kWh energy storage with 768V, 280Ah LiFePO4 battery.
Advanced Battery Technology: Utilizes Lithium Iron Phosphate (LiFePO4) for safety, longevity, and thermal stability.
Power Conversion System (PCS): 100KW PCS providing 400V three-phase AC output.
Battery Management System (BMS): Comprehensive BMS for monitoring and ensuring safe, efficient battery operation.
Integrated Energy Management: Real-time monitoring and control to optimize energy usage and reduce costs.

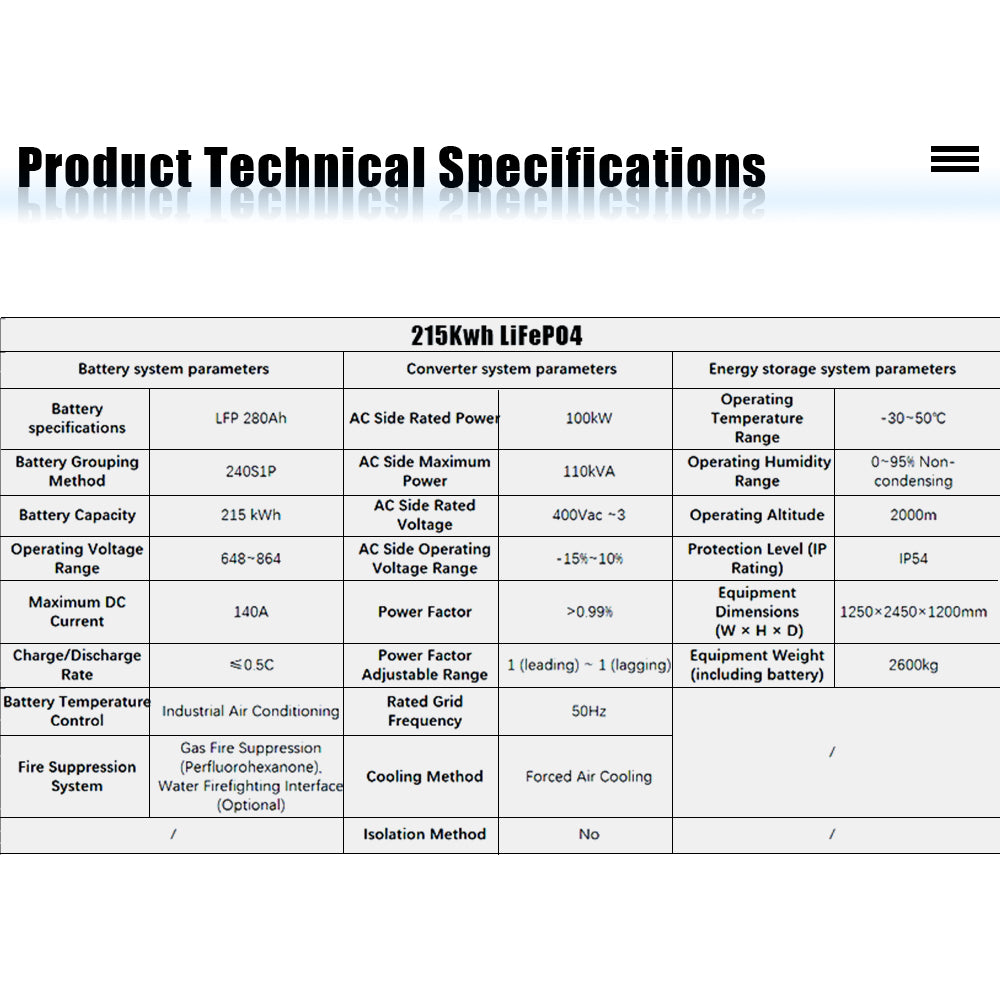

Specifications:

	50kW/100kWh	100kW/215kWh	50kW/83kWh	100kW/215kWh
Model	50(100kwh)	100(215kwh)	50TS(DC50)(83kwh)	100TS(DC100)(215kwh)
Max. PV input power	/	/	50kW	100kW
Max. PV input voltage	/	/	620V	680V
STS	/	/	STS optional	STS optional
Transformer	/	/	Transformer inside	Transformer inside
Battery(DC)
Rated battery capacity	100kWh	215kwh	83kWh	215kwh
Rated system voltage	844.8V	768V	691.2V	768V
Battery type	Lithium iron phosphate battery (LFP)
Battery Cell capacity	120Ah	280Ah	120Ah	280Ah
Series of battery	1P24S11S	1P20S12S	1P24S9S	1P20S12S
AC
Rated AC power	50kW	100kW	50KW	100kW
Rated AC current	72A	144A	72A	144A
Rated AC voltage	400V,3P+N+PE,50/60Hz
THDi	3%(rated power)
PF	-1 leading to+1 lagging
General Parameters
Protection level	IP55
Isolation mode	Non-lsolation (Adding isolation transformer is optional)
Operating temperature	-25~60℃(Derating above 45℃)
Altitude	3000m(>3000m derating)
Communication interface	RS485/CAN 2.0/ Ethernet/dry contact
Dimension(WD H)	120010002150mm	180012002300mm	140010002300mm	180012002300mm
Weight (with battery)	1200kg	2400kg	1750kg	3000kg
Note: Above models are typical configurations. PV charging (DC/DC) module, On/of-grid switching module, industrial isolation transformer and other components can also be selected for micro-grid scenarios, to form Solar ESS integrated system cabinet.

Understanding the EGsolar 215kWh Battery Pack

So, what exactly is the EGsolar 215kWh battery pack? This cutting-edge energy storage system integrates high-capacity batteries, a modular power conversion system (PCS), and a comprehensive energy management system. Let’s dive into its key specifications:
- Capacity: 215kWh
- Voltage: 768V
- Current: 280Ah
- Battery Type: LiFePo4
- Life cycle: 9000+
These specifications make it a powerhouse suitable for various industrial and commercial applications.
Battery Technology

Lithium Iron Phosphate (LiFePO4) Technology

The HAKADI 215 kWh battery pack utilizes Lithium Iron Phosphate (LiFePO4) technology. LiFePO4 batteries are known for their long lifespan, thermal stability, and safety, making them an excellent choice for ESS.

Advantages of LiFePO4 Batteries
- Longer Lifespan: LiFePO4 batteries can last up to 10 years or more.
- Safety: They are less prone to overheating and thermal runaway.
- Environmental Friendliness: These batteries are more environmentally friendly compared to other lithium-ion batteries.
Power Conversion System (PCS)

Role of PCS in ESS

The PCS is vital in converting stored DC power into usable AC power. It ensures that the energy stored in the batteries can be effectively utilized in various applications.

Features of the 100KW PCS in the EGsolar BESS
- Capacity: 100KW
- Output: 400V three-phase AC
This system is designed for optimal efficiency and reliability, making it ideal for commercial and industrial settings.

Battery Management System (BMS)

Importance of BMS

A Battery Management System (BMS) is crucial for ensuring the safe and efficient operation of the battery pack. It monitors the state of charge, temperature, and overall health of the battery.

Features of the EGsolar BMS

The BMS is equipped with advanced monitoring and control features, ensuring that the battery operates within safe parameters and maximizing its lifespan.
