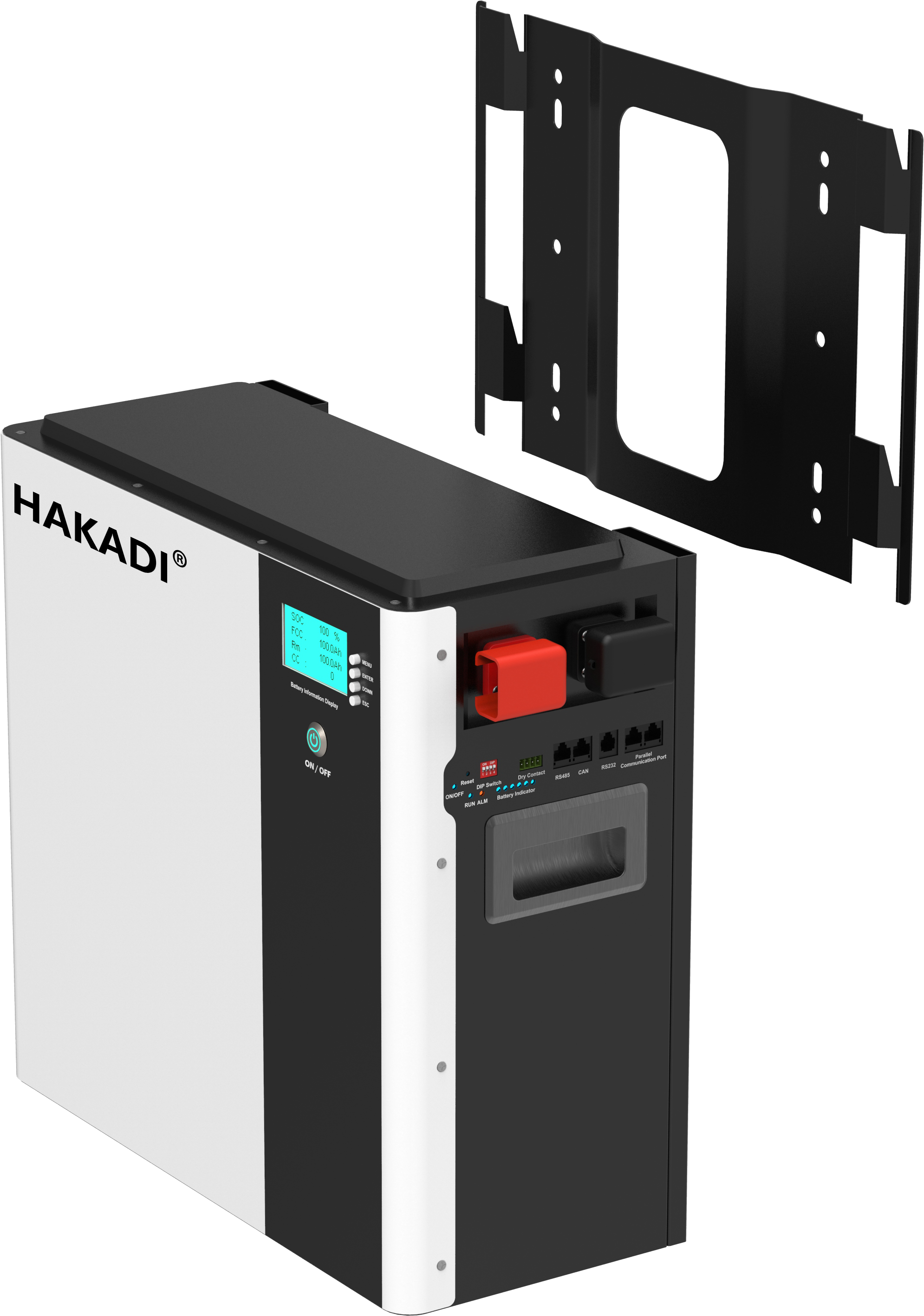

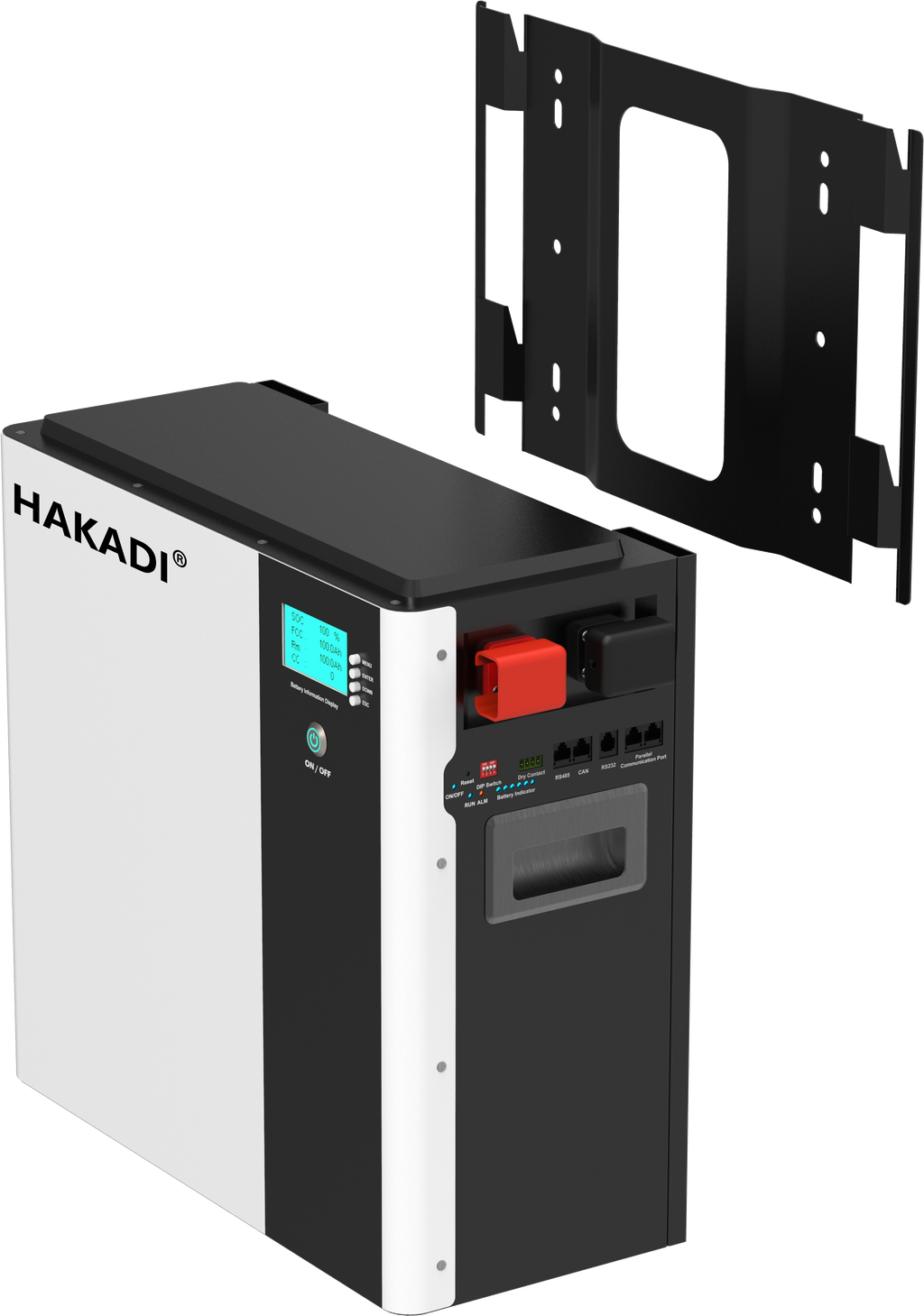

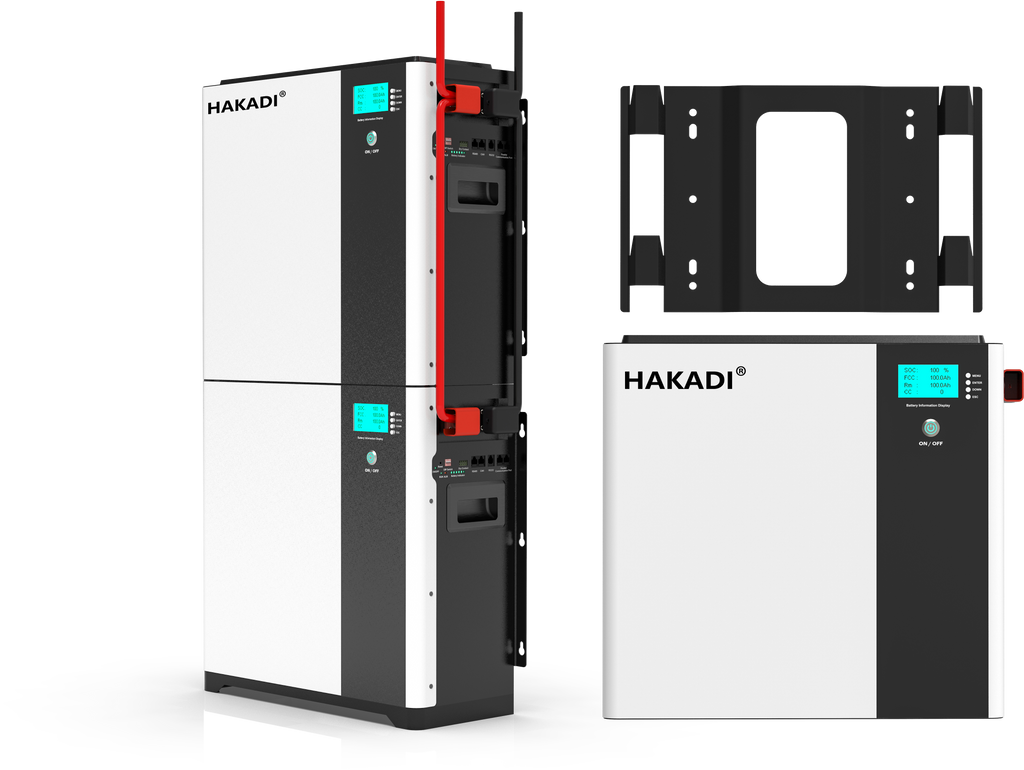

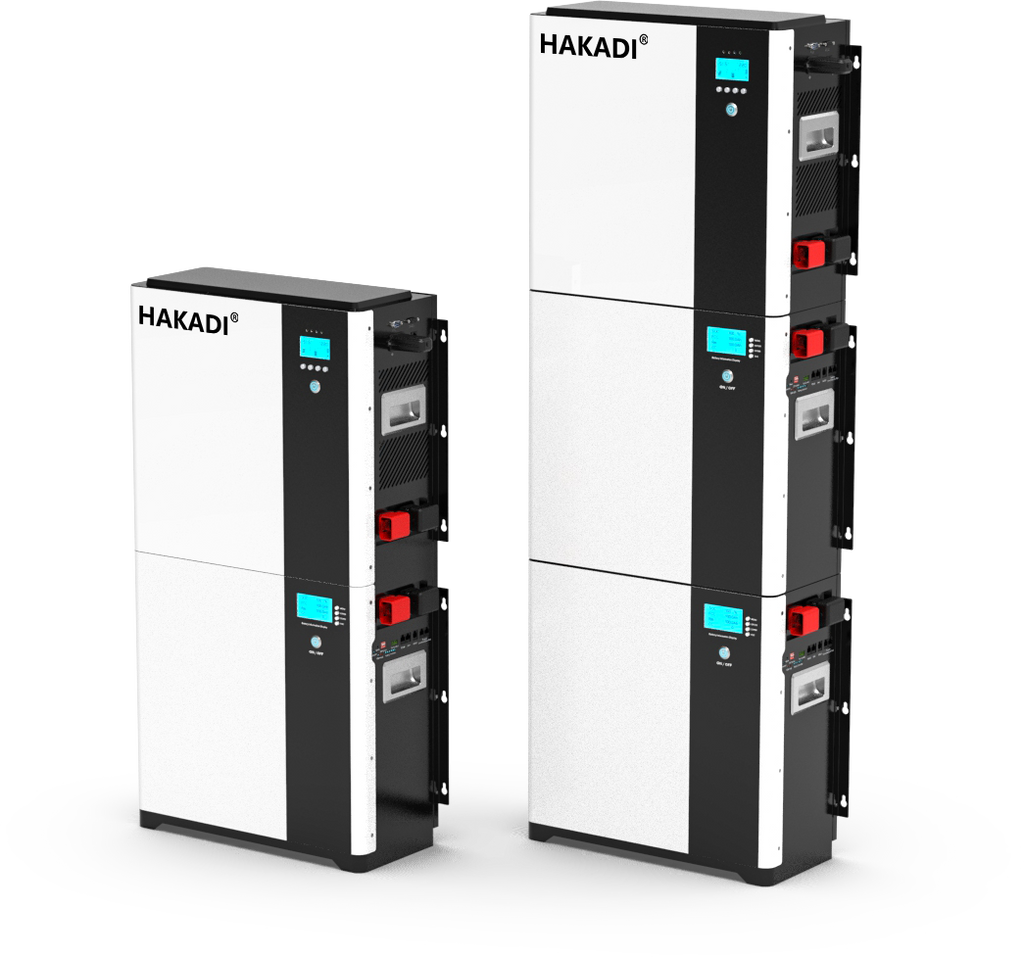

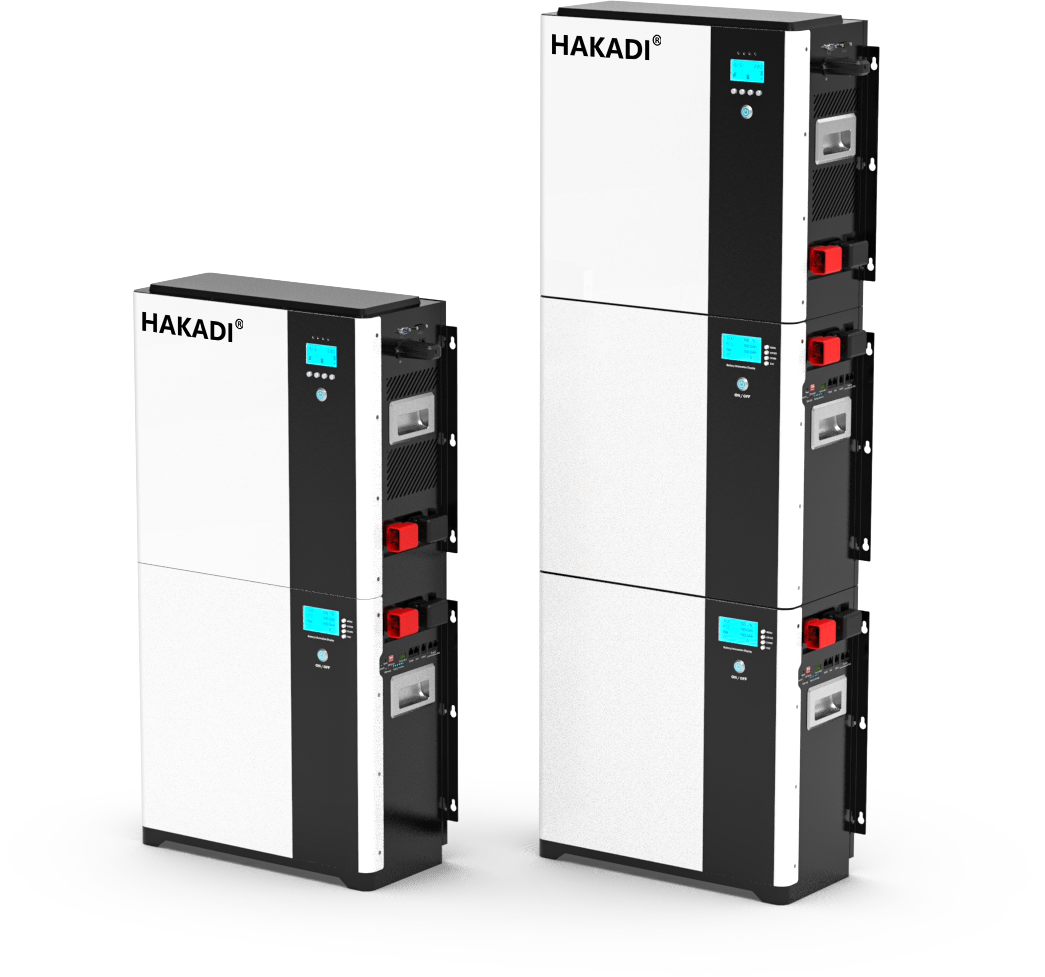

HAKADI 51.2V100A lifepo4 Battery 5Kwh 10kwh 15kwh with 5Kw Inverter AC Output 220V 230v Stackable & Wall Mounted Energy Storage Batteries
HKD AC 5Kwh+5Kw
$2,350.83 USD
Přejít na informace o produktu
HAKADI 51.2V100A lifepo4 Battery 5Kwh 10kwh 15kwh with 5Kw Inverter AC Output 220V 230v Stackable & Wall Mounted Energy Storage Batteries
$2,350.83 USD
| Product Features (battery and inverter all in one system) |

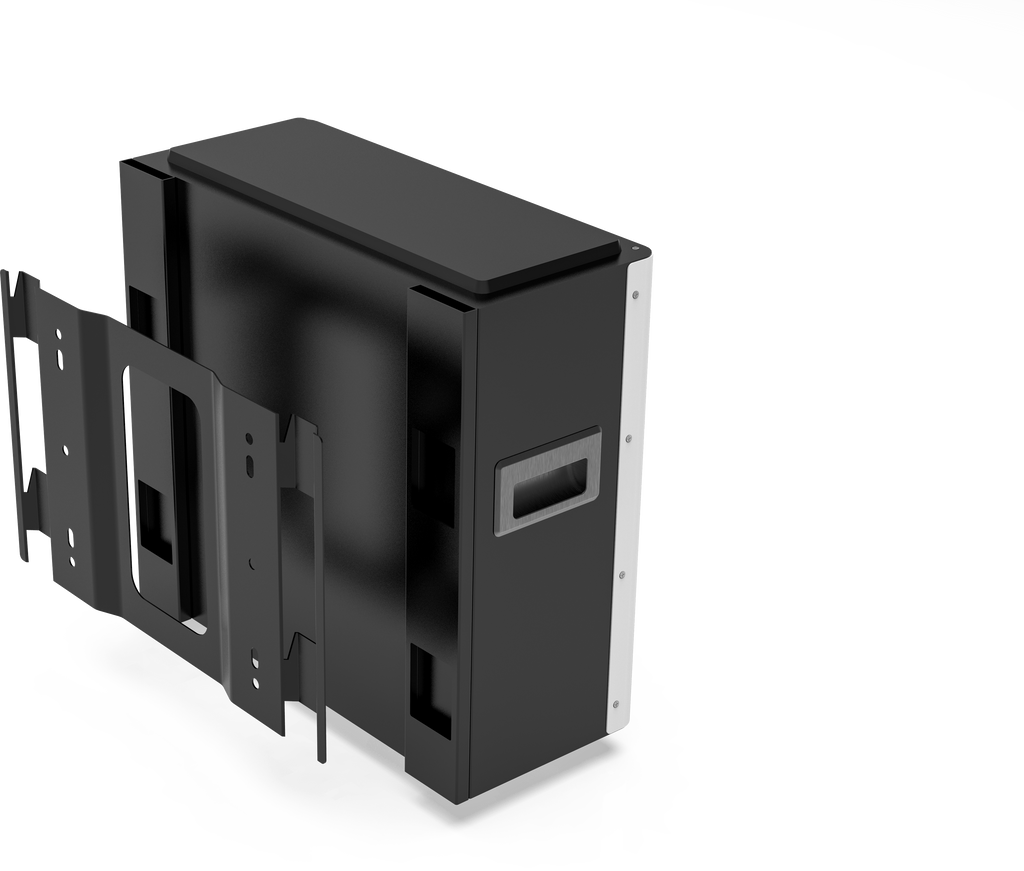

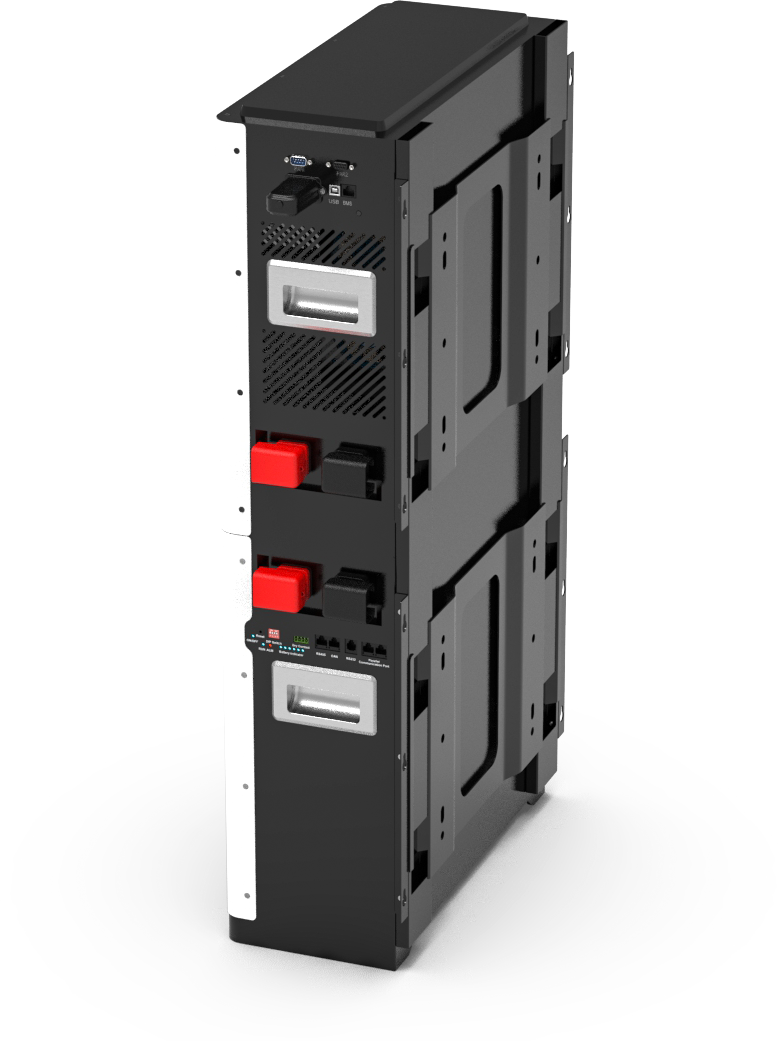

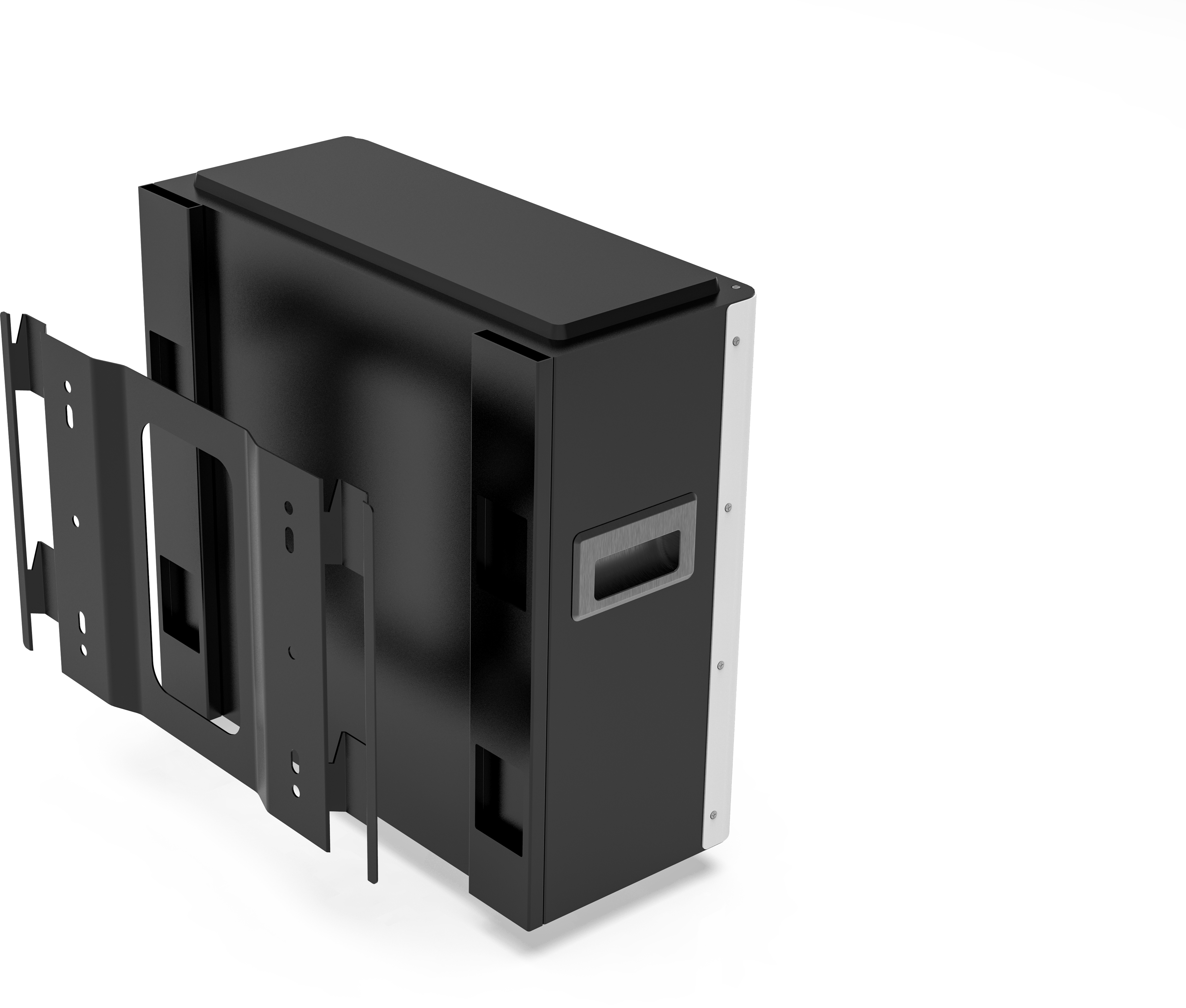

| Stackable & Wall Mounted
Built-in BMS
Energy dense
Long cycle life
Support customization
Support for Parallel Connection

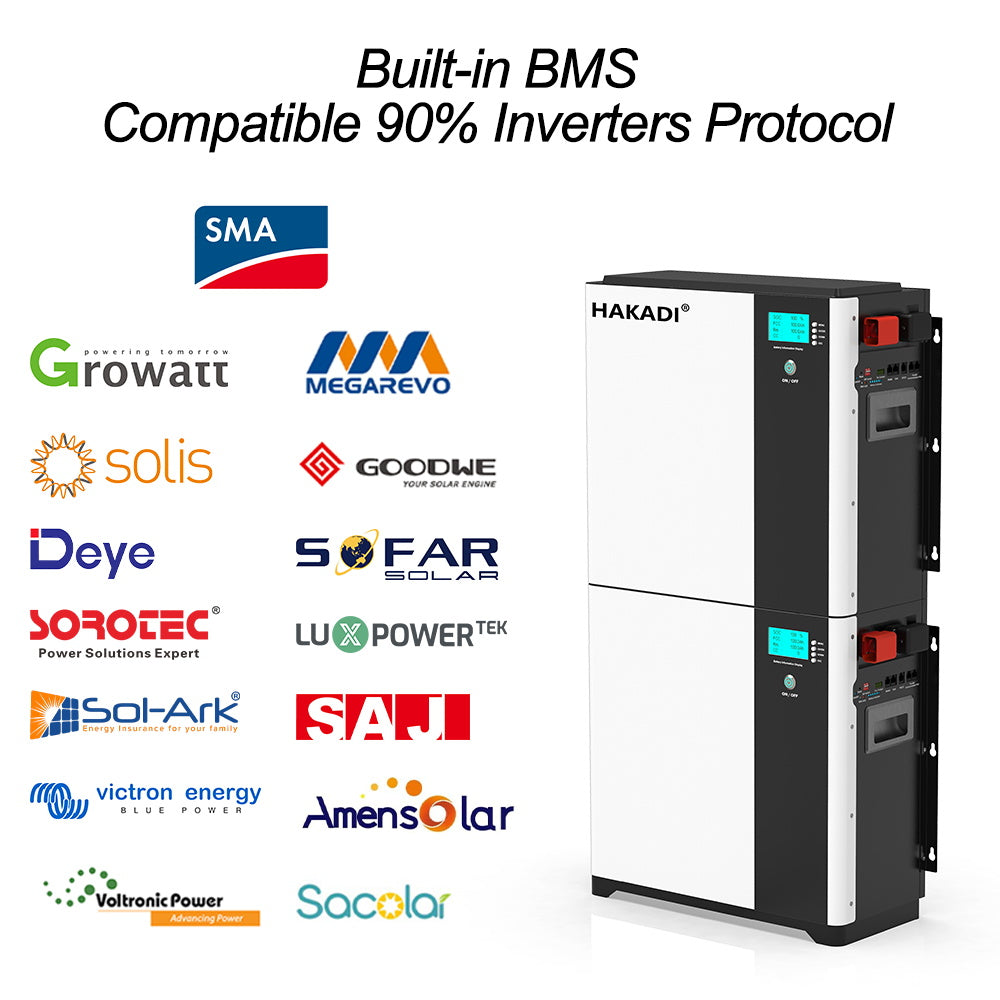

Supports Inverter Communications
|

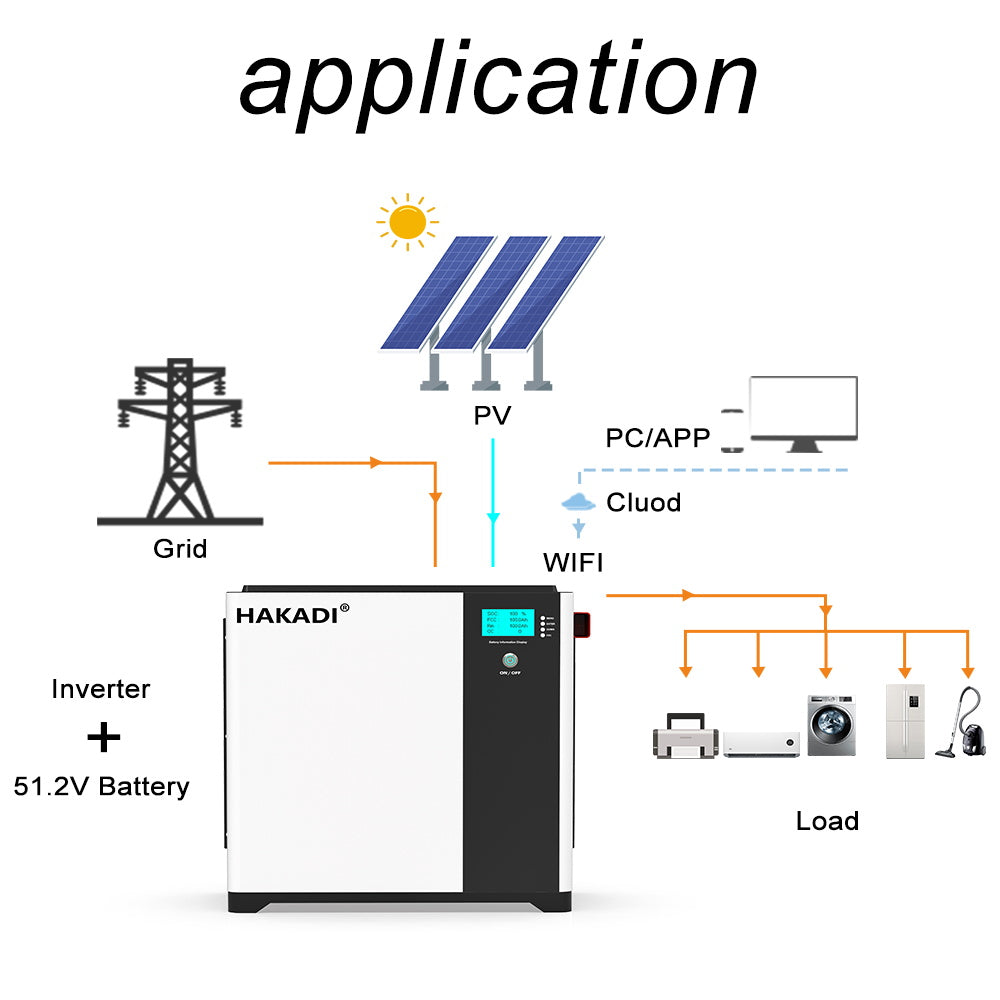

| Applicable Scope |
|
Household Energy Storage
UPS System
Solar Storage
Central Office
Base Transceiver Station
Electric Power System
Telecommunication Systems
Communication Equipments
Switching Applications and More
|
Product Description
|
Household Energy Storage System with Off Grid Inverter(ESS)
|
||||
|
Item
|
Model
|
5Kwh+5Kw
|
10Kwh+5Kw
|
15Kwh+5Kw
|
|

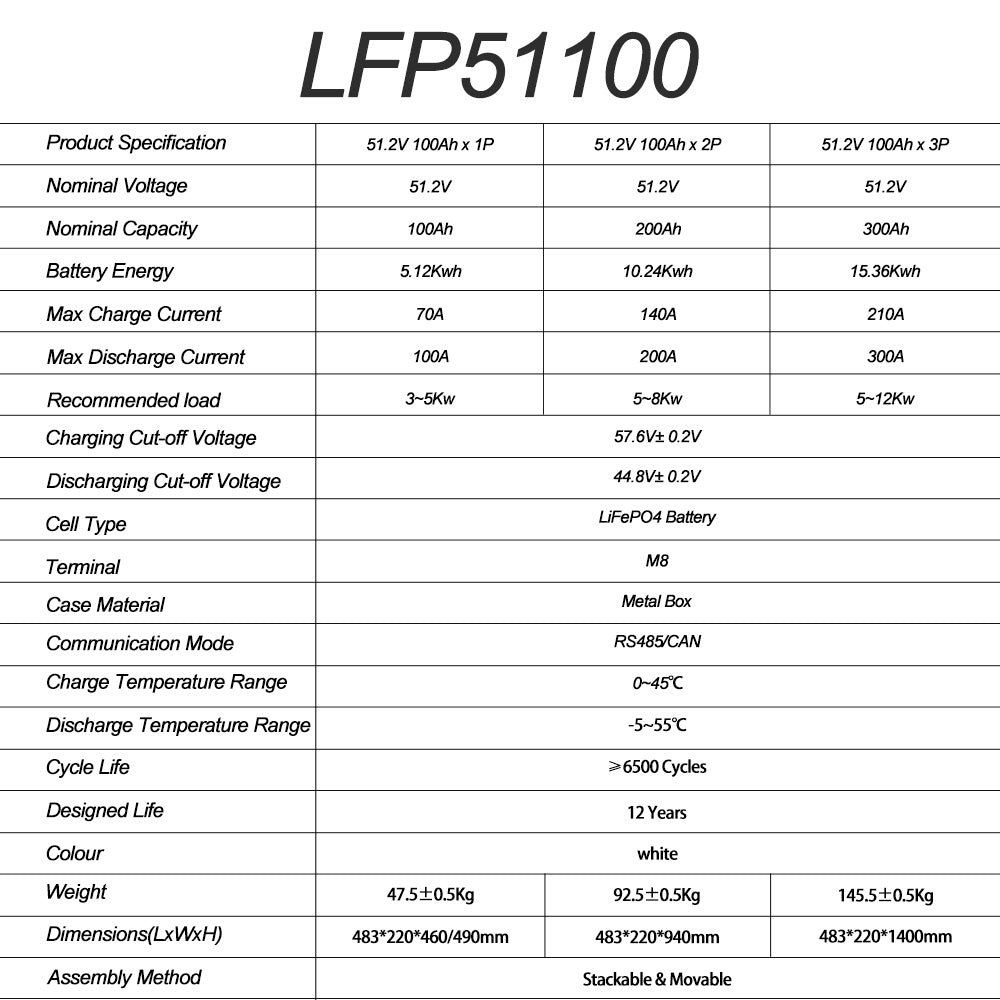

BATTERY MODULE
|
Voltage
|
51.2V
|
||
|
Battery Capacity
|
LFP-HS51100 x 1
100Ah
|
LFP-HS51100 x 2
200Ah
|
LFP-HS51100 x 3
300Ah
|
|
|
Battery Energy
|
5.12Kwh
|
10.24Kwh
|
15.36Kwh
|
|
|
Charging Cut-off Voltage
|
57.6V ± 0.2V
|
|||
|
Discharge cut-off Voltage
|
44.8V ± 0.2V
|
|||
|
Charge Current
|
40A
|
|||
|
Max Charge Current
|
70A
|
|||
|
Discharge Current
|
100A
|
|||
|
Max Discharge Current
|
150A(100mS)
|
|||
|
Communication Method
|
RS485/CAN
|
|||
|
PV INPUT
|
Input Power (PV)
|
5000W / 5500W (max)
|
||
|
Input Voltage Range (PV)
|
450VDC
|
|||
|
MPPT Voltage Range
|
120-430VDC
|
|||
|
PV Max Charging Current
|
0~80A (To be set)
|
|||
|
AC INPUT
|
Rating Input Voltage
|
200V~240VAC
|
||
|
Input Voltage Range
|
(USP)185-280VAC / (APL)90-280 VAC (To be set)
|
|||
|
Input Frequency Range
|
40-70 Hz (Auto test)
|
|||
|
Rating Input Current
|
22.7A
|
|||
|
Max Input Current
|
40A
|
|||
|
AC OUTPUT
|
Rating Output Power
|
5000W
|
||
|
Rating Output Voltage
|
220VAC(208/220/230/240 Vac To be set)
|
|||
|
Output Waveform
|
Pure Sine Wave
|
|||
|
Switch Time
|
Typical 10ms
|
|||
|
Rating Output Frequency
|
50/60Hz (To be set)
|
|||
|
Summit Efficiency
|
＞93%
|
|||
|
Communication Method
|
RS485/CAN/Wifi
|
|||
|
PARAMETER
|
Material / Colour
|
Metal / White+Black
|
||
|
Size
|
483*200*940mm
|
483*200*1390mm
|
483*200*1840mm
|
|
|
Weight
|
62Kg ± 2Kg
|
107Kg ± 2Kg
|
152Kg ± 2Kg
|
|
|
Temperture
|
Charge: 0°C-50°C / Discharge:-5°C-55°C
|
|||
