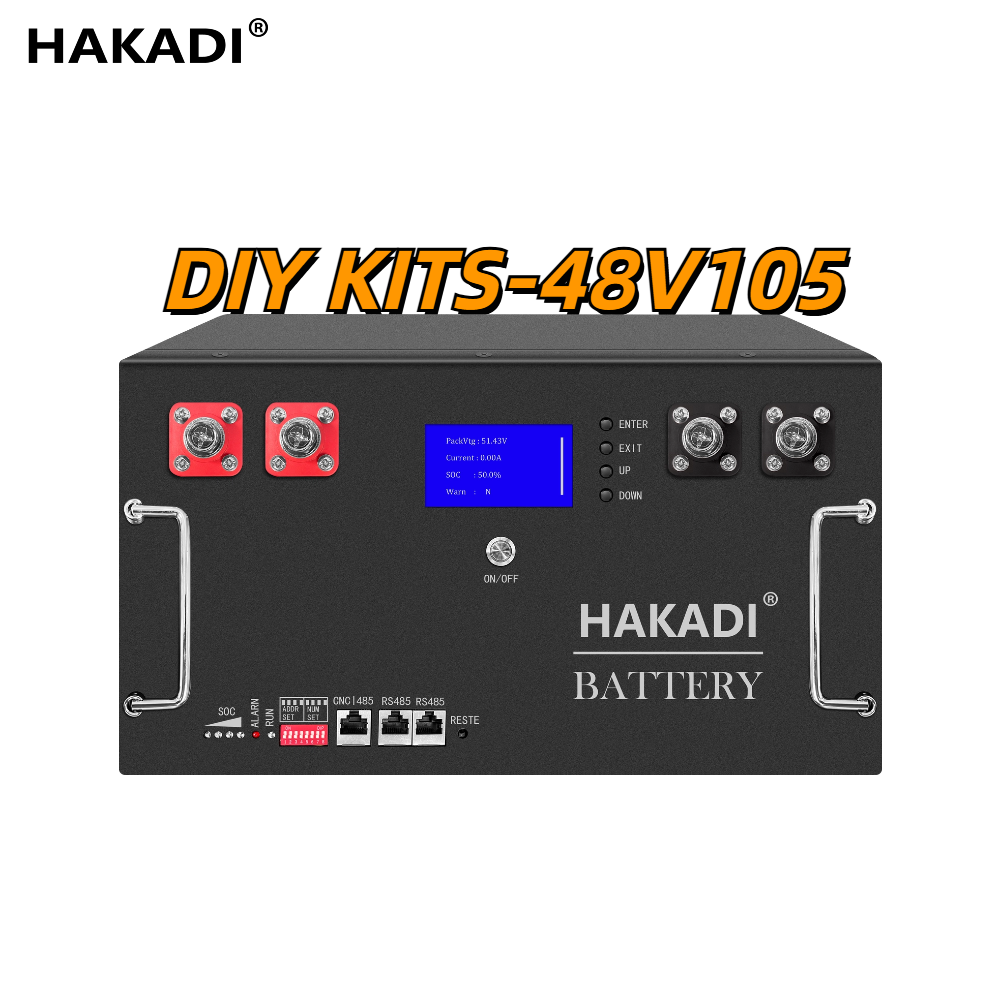

HAKADI 48V105A DIY BOX KITS With 16S 100A BMS CAN RS485 Good BOX for EVE LF105 lifepo4 DIY 5kwh Energy storage system

Battery Type:105Ah battery module
Material: Steel
Communication: CANBUS/RS485
BMS: 48V 16S 100A BMS
Nominal Voltage:51.2V
Current 105A
Warranty:2 Years
Battery Pack Type: Stackable
OEM/ODM: Available

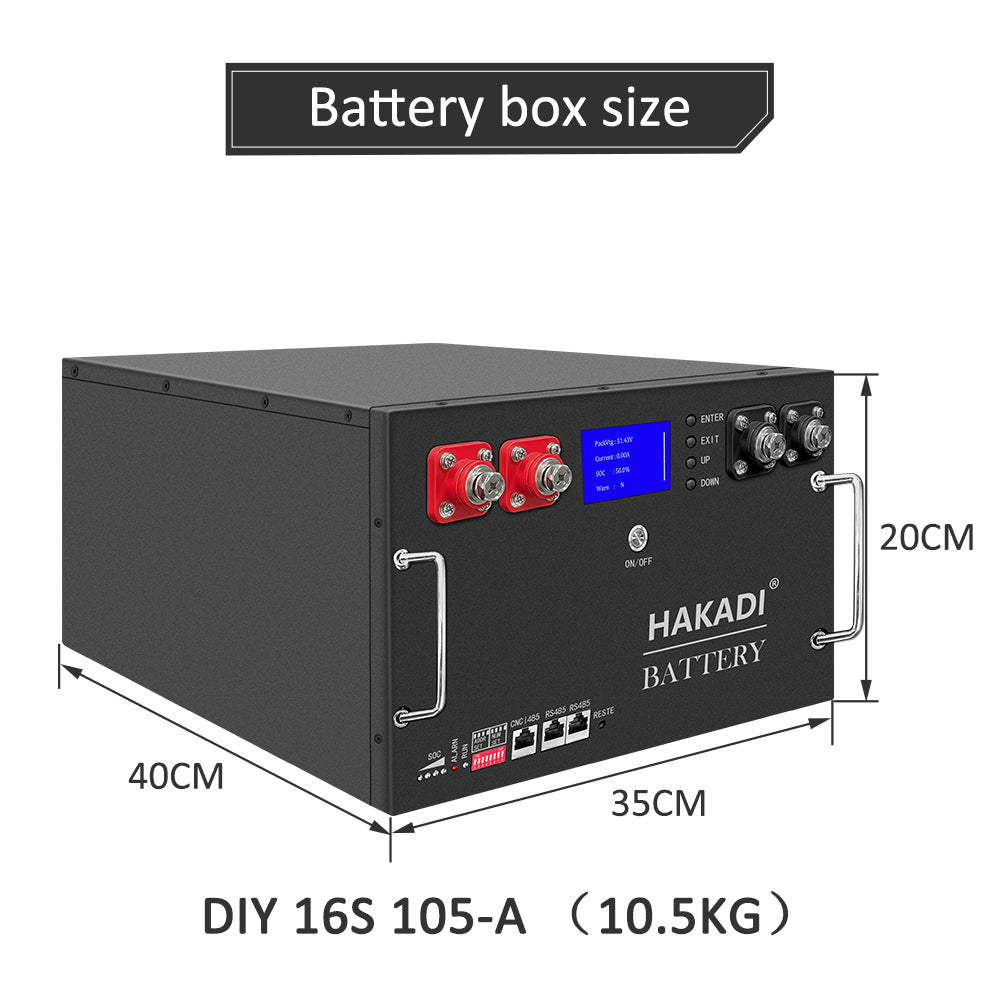

Weight:29kg

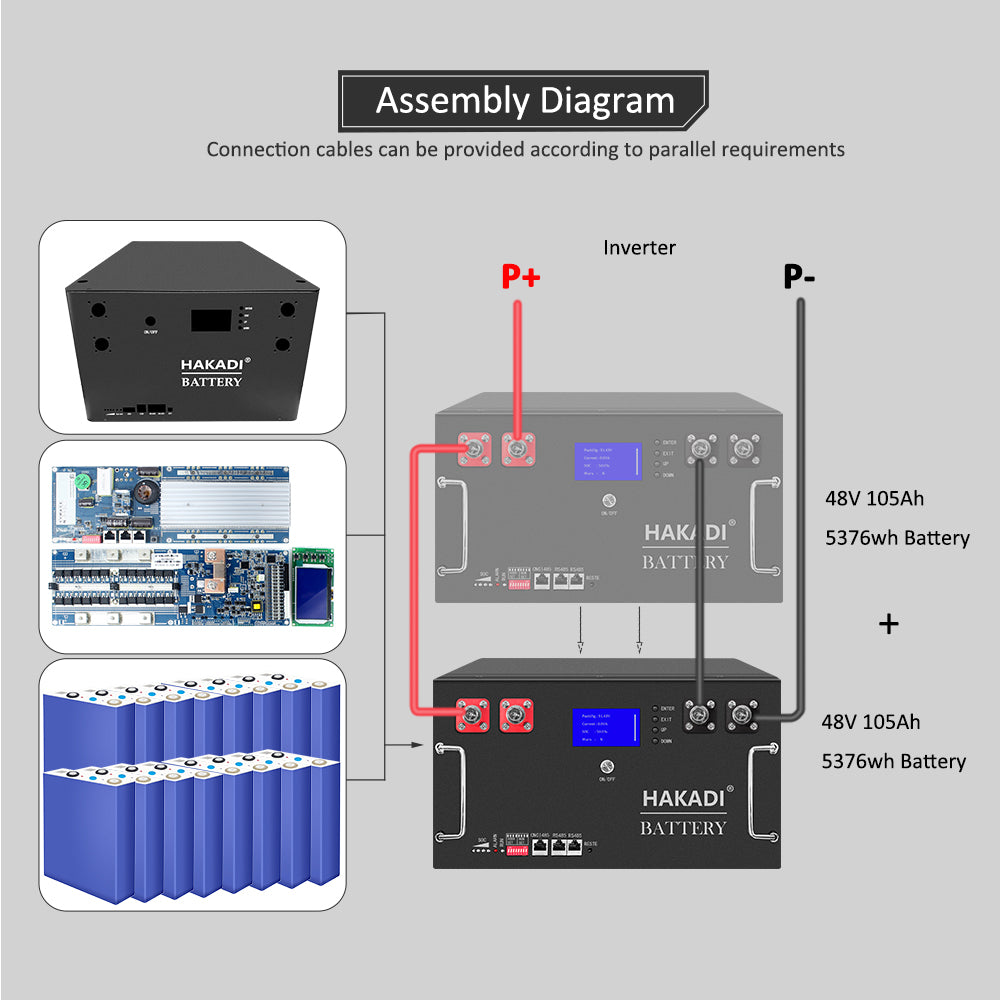

Stackable Type:up to 14 batteries

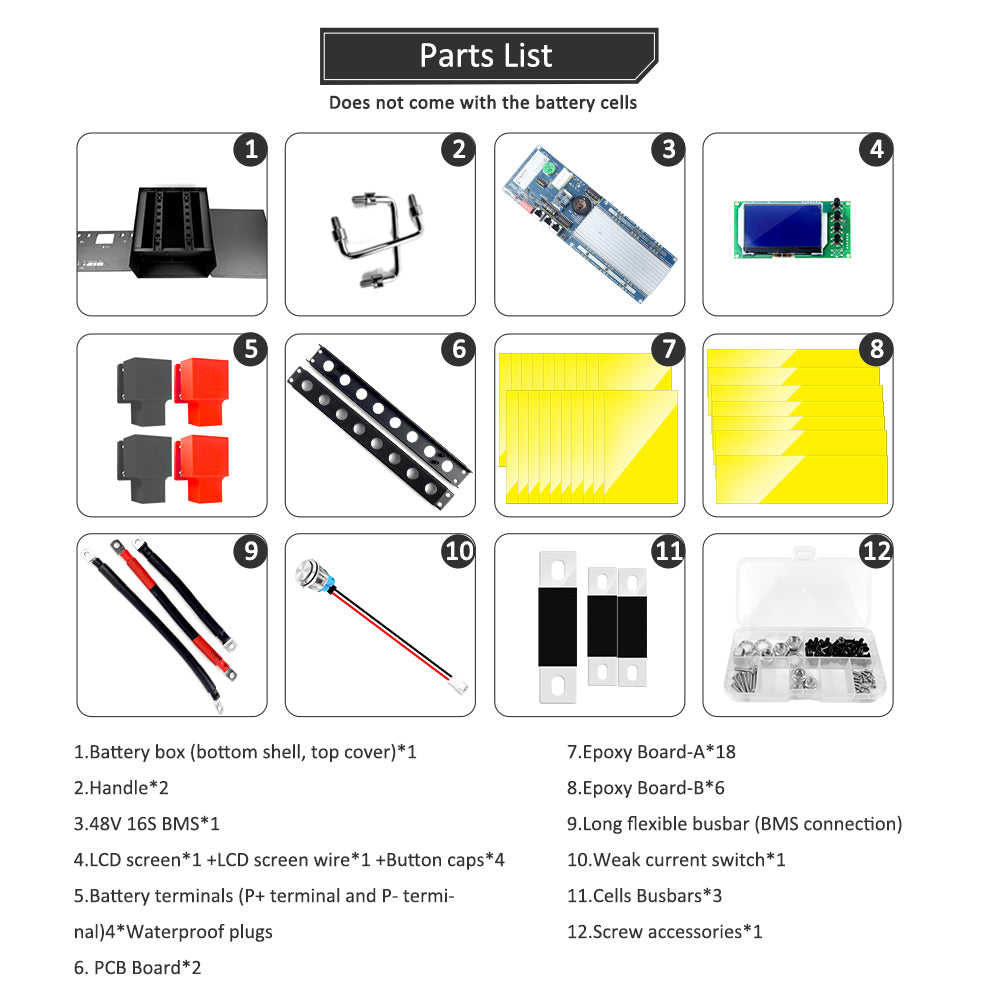

Parts List(does not come with the battery module)

1 * Battery box (bottom shell, hanging bracket and accessories, top cover)

1 * 150A CNL fuse

1 * Weak current switch

1 * 48V 16S BMS +2*BMS wires

1 * LCD screen +1*LCD screen wire +4 * Button caps

4 * Battery terminals (P+ terminal and P- terminal)4*Waterproof plugs

5 * Long flexible busbar (BMS connection)1*Special busbar (module connection)

1*Screw accessories

Other small accessories

If you need assembled 51.2V100A lifepo4 battery pack system, pleae contact us!

HAKADI Lifepo4 support lifepo4 battery pack customization:

48v 100 ah lithium battery lifepo4/48v 150ah 7.68kwh lithium battery lifepo4/lifepo4 battery box and inverter/ 12v 100ah group 24 lifepo4 battery/ 51.2v 100ah lifepo4 lithium battery/48v 150ah stackable lifepo4 cloud energy /lifepo4 car battery /24v 200ah lifepo4 battery/ 36v lifepo4 battery/ lifepo4 automotive battery/ lifepo4 battery box...

All lifepo4 battery packs are Built-in bms battery management system lifepo4
