HAKADI Lifepo4

BESS 200KWH 215kwh battery pack 768 volt 280Ah Industrial Commercial Outdoor Cabinet

BESS 200KWH 215kwh battery pack 768 volt 280Ah Industrial Commercial Outdoor Cabinet

Regular price $53,800.00 USD
Regular price Sale price $53,800.00 USD
Sale Sold out

Out of stock

About Shipment

EU warehouse:

1. Lead time: ready to ship products is 48 hours; Pre-sale products please contact US

2. Shipment time: 7-10 days shipping time, Local address 1-3 days

China Warehouse:

1. Because the battery is prohibited product, many courier and logistics are unable to send, the arrival will slower than other products, please wait patiently after place the order. And we don't accept the dispute and negative review due to the long time delivery of the courier company and other factors.

2. About the delivery time:

a. The batteries ship to EU, US, CA are include custom clearance and tax. By sea take 45-55 work days; By air take 25-30 work days.The shipping information will be updated after the package finish the custom clearance and pick up by the local express.

b. For customers in Ukraine, we can ship the from China to your door. By sea take 55-60 work days; By air take 25-35 work days. Remote areas can't be shipped, please contact the customer service.

c. For Russia, Belarus customers, it can only ship by sea or train, usually take 30-45 work days. d. Ship to Asia countries usually will take 20-30 work days. And the shipping details usually be updated after it arrive to local post.

3. Please make sure the recipient information is correct. After the batteries arrive to local transport station, it need to contact you to arrange the shipment. If due to your phone number is not right or could not contact you through message cause the delivery fail. We will not accept the dispute.

About Payment

1. Shopify Order

2. Other Payment:

(1) Alibaba Order

(2) Bank Tansfer/TT:(USD/Euros/RUB/RMB)

For Russia Customers, our company have VTB Shanghai Bank, if you want to pay via RMB or Rubles, please contact us!

Email: joy@szhakadi.com

WhatsApp: +8615819502067

Contact US

Questions or Concerns? Hit us up with any questions about your order. Our Customer service team is ready to assist you.


Contact information:
Chat with us online or email us: joy@szhakadi.com

WhatsApp: +8615819502067
Hours of Operation: Monday- Friday 9:00 AM-6:00PM

*Requests are typically responded within 24 hours after receiving your order.

*You can also fill in the follows form to get our timely feedback.

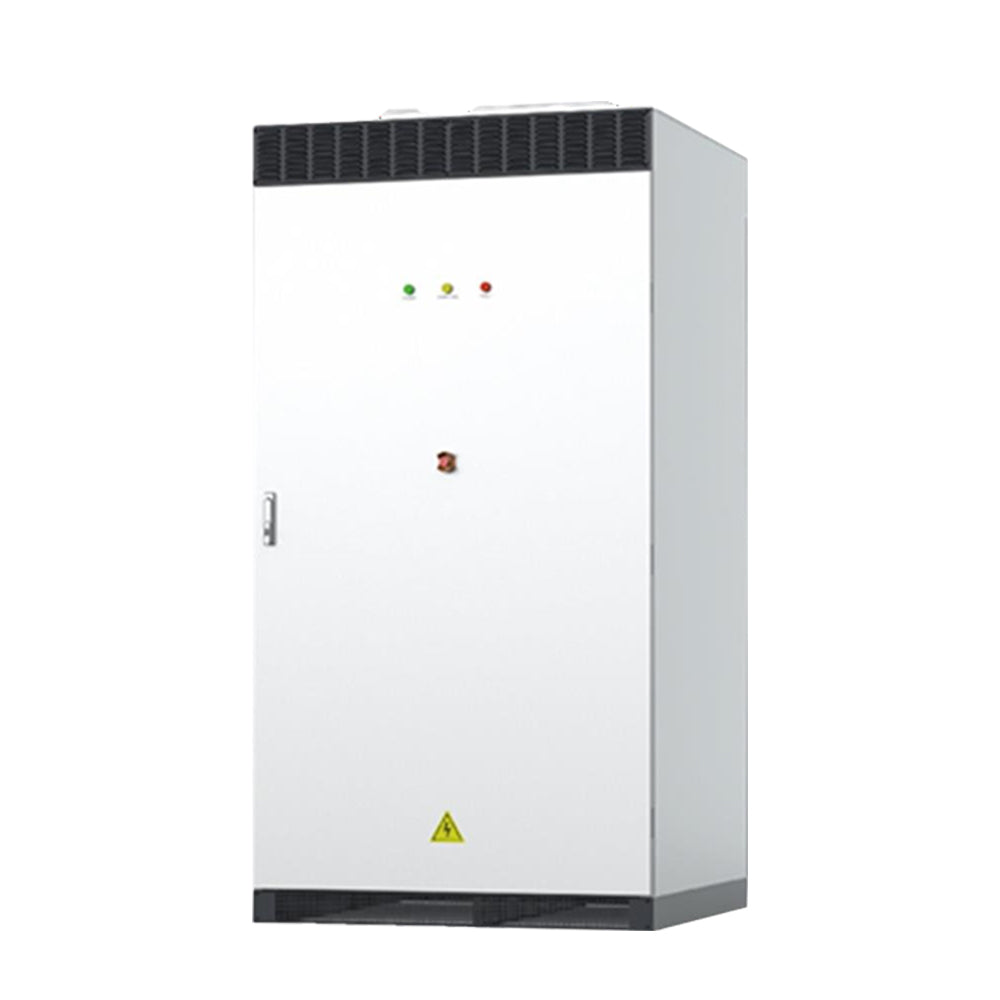

HAKADI 215 commercial & industrial energy storage system adopts the All in one design concept. The cabinet is integrated with a battery management system (BMS), and an energy management system (EMS).modular power conversion system(PCS),andfireprolec-tian system. The system's capacity is up to 215 kWh and the power is up to 100 kW. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start(The ability to restore power without relying on the help of other networks after the power system is out of service due to a fault.).
HAKADI 215 intelligent energy storage system is directly connected to the low-voltage side and can realize multi-connection cabinets and flexible expansion. lt is the best choice for all industrial and commercial application scenarios.

Advantages

  • High Capacity: 215kWh energy storage with 768V, 280Ah LiFePO4 battery.
  • Advanced Battery Technology: Utilizes Lithium Iron Phosphate (LiFePO4) for safety, longevity, and thermal stability.
  • Power Conversion System (PCS): 100KW PCS providing 400V three-phase AC output.
  • Battery Management System (BMS): Comprehensive BMS for monitoring and ensuring safe, efficient battery operation.
  • Integrated Energy Management: Real-time monitoring and control to optimize energy usage and reduce costs.
  • Specifications:

    50kW/100kWh 100kW/215kWh 50kW/83kWh 100kW/215kWh
    Model 50(100kwh) 100(215kwh) 50TS(DC50)(83kwh) 100TS(DC100)(215kwh)
    Max. PV input power / / 50kW 100kW
    Max. PV input voltage / / 620V 680V
    STS / / STS optional STS optional
    Transformer / / Transformer inside Transformer inside
    Battery(DC)
    Rated battery capacity 100kWh 215kwh 83kWh 215kwh
    Rated system voltage 844.8V 768V 691.2V 768V
    Battery type Lithium iron phosphate battery (LFP)
    Battery Cell capacity 120Ah 280Ah 120Ah 280Ah
    Series of battery 1P*24S*11S 1P*20S*12S 1P*24S*9S 1P*20S*12S
    AC
    Rated AC power 50kW 100kW 50KW 100kW
    Rated AC current 72A 144A 72A 144A
    Rated AC voltage 400V,3P+N+PE,50/60Hz
    THDi 3%(rated power)
    PF -1 leading to+1 lagging
    General Parameters
    Protection level IP55
    Isolation mode Non-lsolation (Adding isolation transformer is optional)
    Operating temperature -25~60℃(Derating above 45℃)
    Altitude 3000m(>3000m derating)
    Communication interface RS485/CAN 2.0/ Ethernet/dry contact
    Dimension(W*D *H) 1200*1000*2150mm 1800*1200*2300mm 1400*1000*2300mm 1800*1200*2300mm
    Weight (with battery) 1200kg 2400kg 1750kg 3000kg
    Note: Above models are typical configurations. PV charging (DC/DC) module, On/of-grid switching module, industrial isolation
    transformer and other components can also be selected for micro-grid scenarios, to form Solar ESS integrated system cabinet.

    Understanding the EGsolar 215kWh Battery Pack

  • So, what exactly is the EGsolar 215kWh battery pack? This cutting-edge energy storage system integrates high-capacity batteries, a modular power conversion system (PCS), and a comprehensive energy management system. Let’s dive into its key specifications:

    • Capacity: 215kWh
    • Voltage: 768V
    • Current: 280Ah
    • Battery Type: LiFePo4
    • Life cycle: 9000+

    These specifications make it a powerhouse suitable for various industrial and commercial applications.

  • Battery Technology

    Lithium Iron Phosphate (LiFePO4) Technology

    The HAKADI 215 kWh battery pack utilizes Lithium Iron Phosphate (LiFePO4) technology. LiFePO4 batteries are known for their long lifespan, thermal stability, and safety, making them an excellent choice for ESS.

    Advantages of LiFePO4 Batteries

    • Longer Lifespan: LiFePO4 batteries can last up to 10 years or more.
    • Safety: They are less prone to overheating and thermal runaway.
    • Environmental Friendliness: These batteries are more environmentally friendly compared to other lithium-ion batteries.

    Power Conversion System (PCS)

    Role of PCS in ESS

    The PCS is vital in converting stored DC power into usable AC power. It ensures that the energy stored in the batteries can be effectively utilized in various applications.

    Features of the 100KW PCS in the EGsolar BESS

    • Capacity: 100KW
    • Output: 400V three-phase AC

    This system is designed for optimal efficiency and reliability, making it ideal for commercial and industrial settings.

    Battery Management System (BMS)

    Importance of BMS

    A Battery Management System (BMS) is crucial for ensuring the safe and efficient operation of the battery pack. It monitors the state of charge, temperature, and overall health of the battery.

    Features of the EGsolar BMS

    The BMS is equipped with advanced monitoring and control features, ensuring that the battery operates within safe parameters and maximizing its lifespan.
