Product Parameters

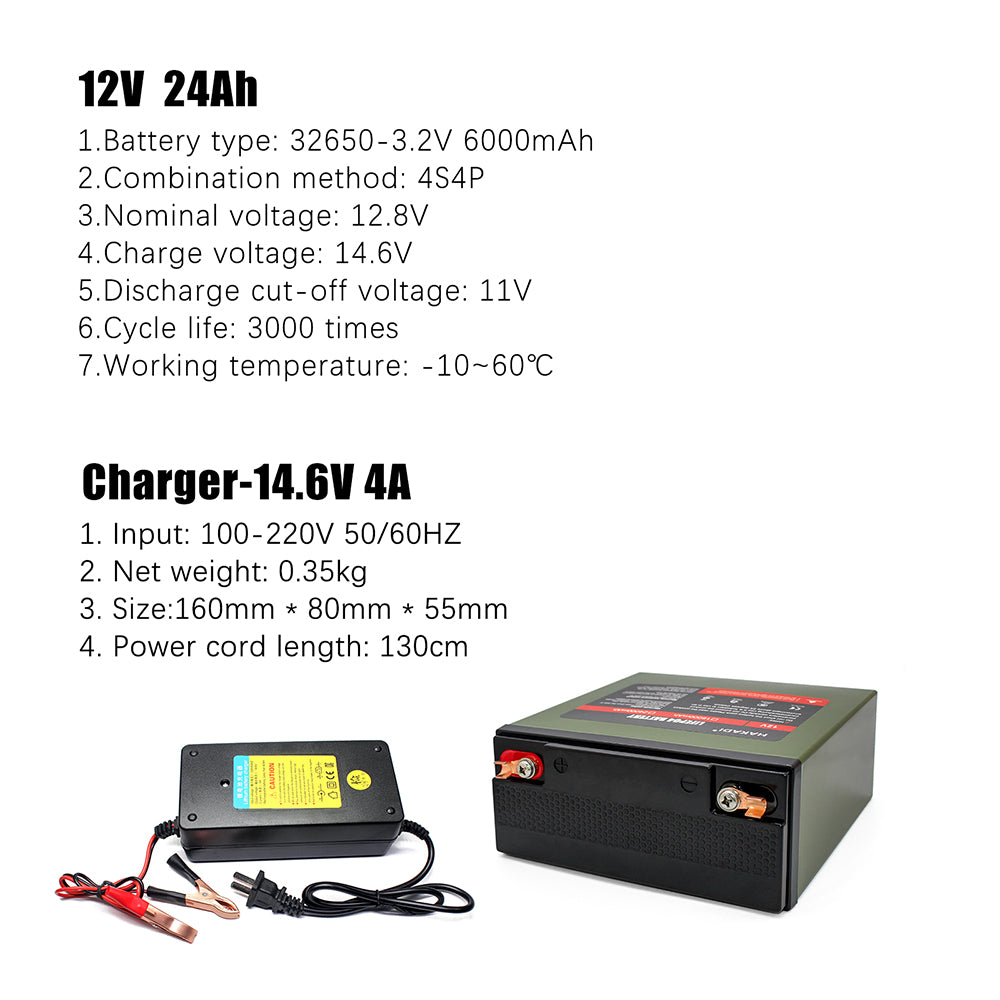

Battery type: Lifepo4 32650-6000mah/21700-3000mah
Combination method: 4S4P/4S8P
Nominal capacity: 24Ah
Nominal voltage: 12.8V

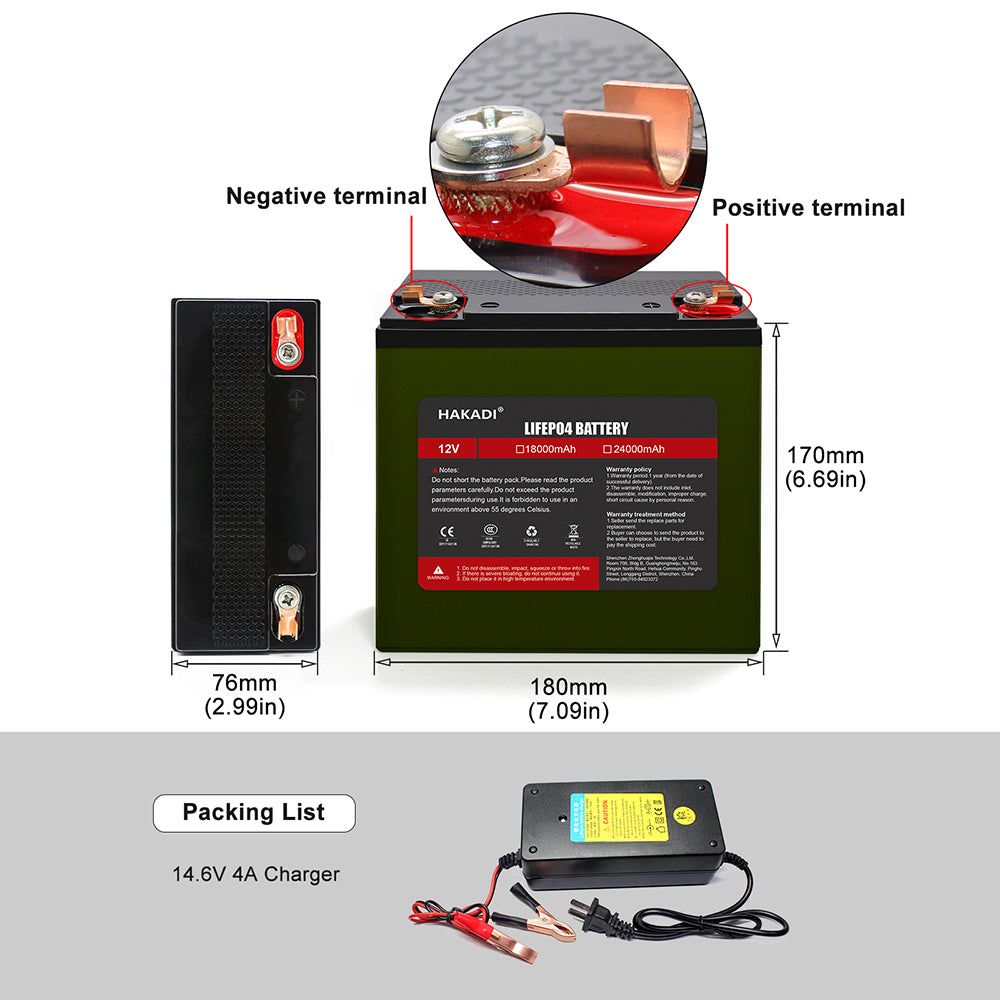

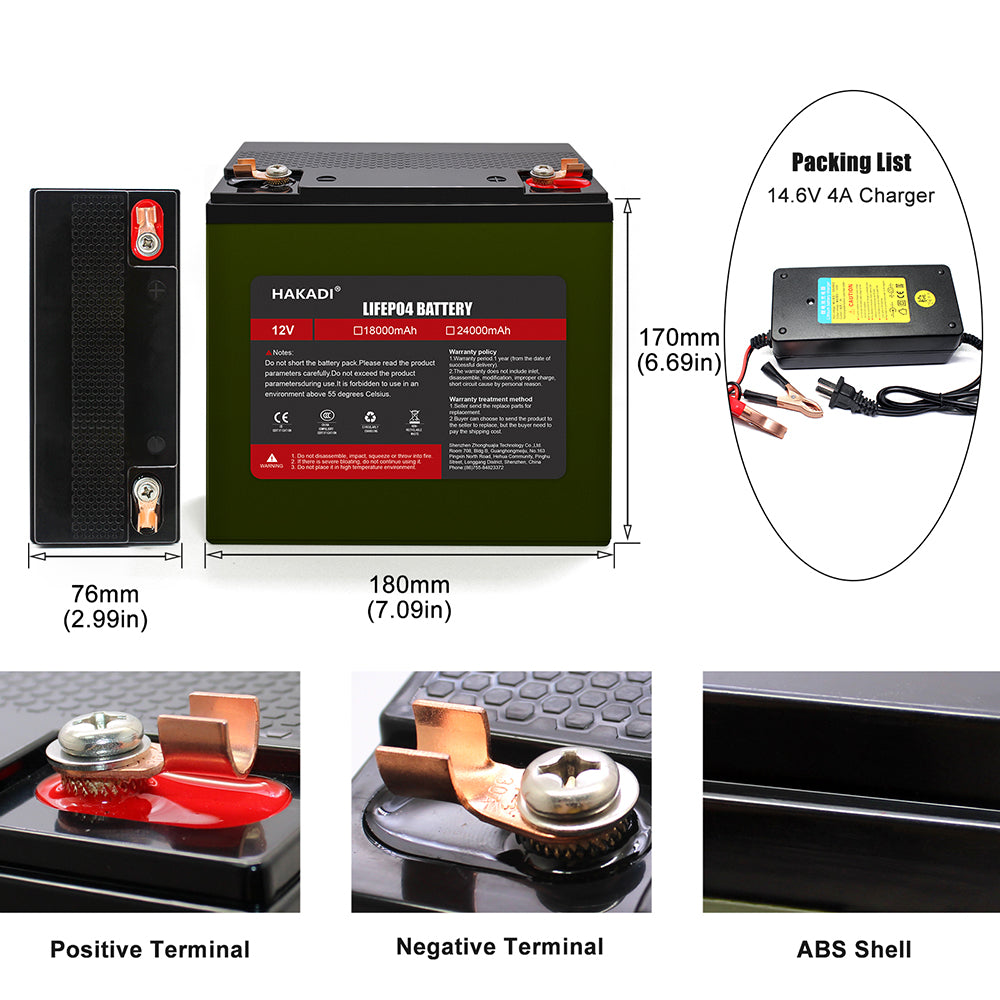

Battery size: 180*170*76mm
Battery weight: about 2.65kg
Cycle life: more than 3000 times, DOD 80%
Charge voltage : 14.6V
Power: 307.2Wh
Standard charging method: Constant Current 0.2C，Constant Voltage 14.6V，0.01C cut-off
Max. charge current: 12A
Cut-off voltage: 11V
Max Continuous discharge current: 48A (5 min)
BMS protect current: 72A
Operating Temperature
Charging: 0～45℃
Discharge: -10～60℃
lifepo4 bms:12V20A
Packing List

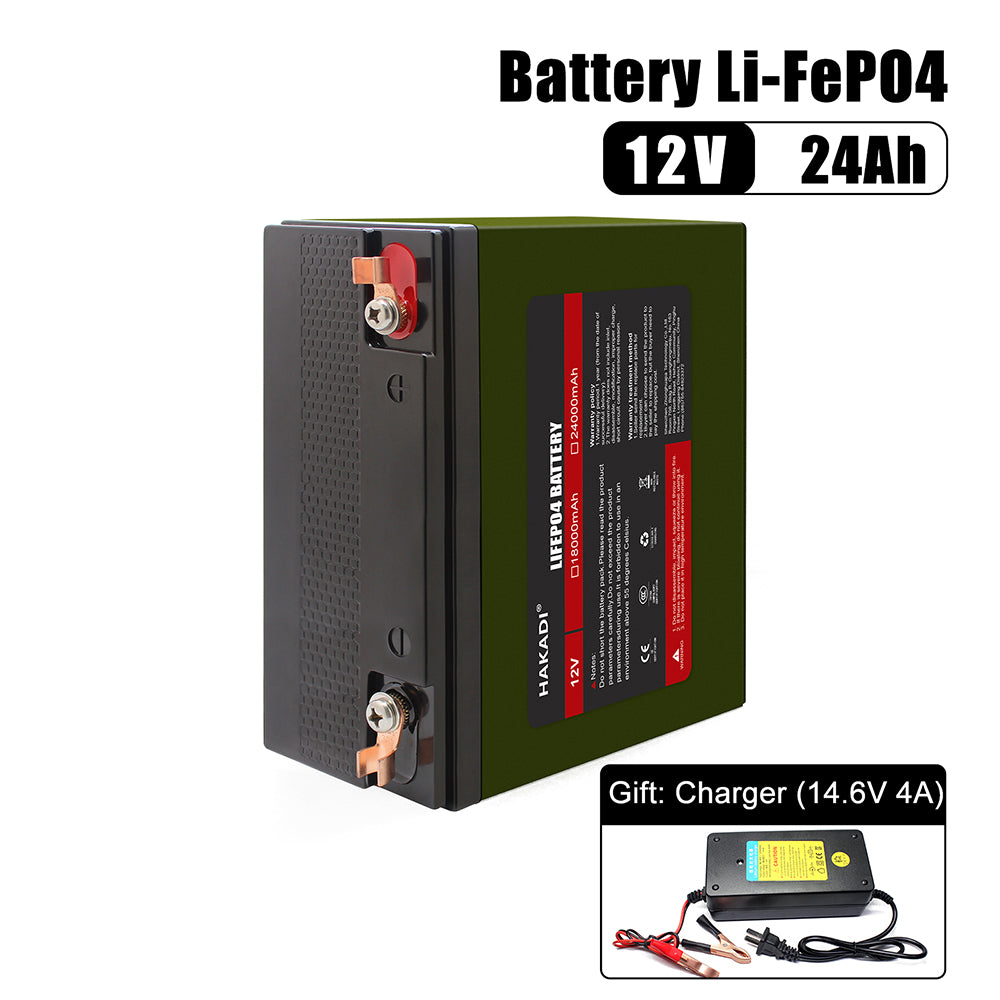

1×12V 24Ah Lifepo4 Battery pack
1×14.6V 4A charger
Application
Scooter, electric bicycle, children's toy car, electric wheelchair, sprayer, fishing detector, sonar, outdoor power supply, solar energy storage, solar street light, CCTV, household appliances, emergency power supply
Remark
12V 24Ah Lifepo4 battery with build in BMS. It can support connect in series and parallel. But connect in series cannot exceed 30V.
2. The battery BMS protect current is 3C, so it cannot replace Lead-acid battery as the start power.
- 3. We have lithium, Lifepo4, LTO batteries, accept customized battery pack, we can't update all items here. If you want to customized your own battery, please contact us about your requirement (capacity, voltage, size, discharge current, etc). Thank you
